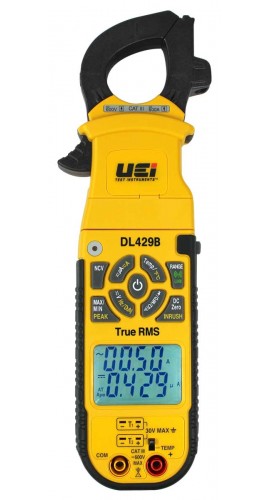

UEi DL429B True RMS Digital Clamp-On Meter, -328 to 2,462°F, 600 A AC

Model: DL429B | UPC: 053533507164

UEi DL429B True RMS Digital Clamp-On Meter, -328 to 2,462°F, 600 A AC-

Downloads:

More UEi Products

Ask an Expert

UEi DL429B True RMS Digital Clamp-On Meter, -328 to 2,462°F, 600 A AC

Model: DL429B | UPC: 053533507164

Featuring a -328 to 2,462°F (-200 to 1,350°C) range, this true RMS digital clamp-on meter simplifies differential temperature readings.

Featuring a -328 to 2,462°F (-200 to 1,350°C) range, this true RMS digital clamp-on meter simplifies differential temperature readings.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

UEi DL599 Wireless TRMS Clamp Meter with three-phase and unbalance motor tests, 600 A AC/DC, 9999 μF-

UEi DL599 Wireless TRMS Clamp Meter with three-phase and unbalance motor tests, 600 A AC/DC, 9999 μF

Model: DL599

Work with full HVAC/R functionality and advanced features like DC amps, LRA inrush, differential temperature, and wireless connection to a free app for logging, graphing, and emailing results with this wireless TRMS clamp meter. In addition, this meter features a three-phase and unbalanced motor test, 600 A AC/DC, and 9999 μF.

Learn More

UEi DL429B Offers

Easily take differential temperature measurements using this UEi DL429B True RMS Digital Clamp-On Meter, which features a broad measurement range of -328 to 2,462°F (-200 to 1,350°C). You can connect the clamp-on meter to a wireless app, so you can use your mobile device to track and analyze the meter's readings and control its functionality.

Features

  • 750 VAC and 1,000 VDC power ratings, as well as a 600 A AC rating, enables use with most ECM motors, variable-speed DC motors, plug-and-play DC motors and AC ductless mini splits
  • Dual K-type temperature input with an extensive range of -328 to 2,462°F (-200 to 1,350°C) enables user T1, T2 and T1 - T2 differential readings
  • Wirelessly connects to a compatible UEi app, so you can remotely monitor readings, control the meter's functions and log, graph or e-mail collected measurements

UEi DL429B Specifications

Temperature Range -328 to 2,462°F (-200 to 1,350°C)
True RMS Yes
CAT Rating CAT III 600 V
AC Voltage 750
DC Voltage 1000
AC Amperage 600
DC Micro-Amperage 600 to 2,000
NCV Yes
Resistance 60 MΩ
Continuity Yes
Diode Test Yes
Display Count 6000
Frequency 99.99 Hz to 99.99 kHz
DC Amperage 600
Clamp Head Type Detachable
Manufacturer Warranty 2-year limited
Click here for complete specifications on the UEi DL429B

What's included with the UEi DL429B

  • Digital Clamp-On Meter
  • Test Leads with Alligator Clips
  • Case
  • Batteries
  • K-Type Thermocouple Probe
  • Owner's Manual
