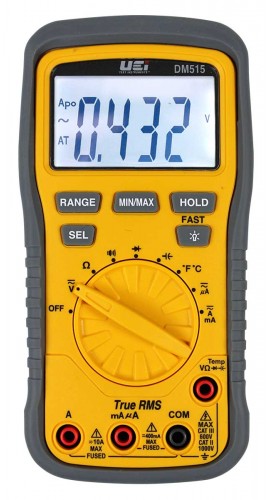

UEi DM515 True RMS Digital Multimeter, 1,000 V, -328 to 2,462°F

Model: DM515 | UPC: 053533508185

UEi DM515 True RMS Digital Multimeter, 1,000 V, -328 to 2,462°F-

Downloads:

More UEi Products

Ask an Expert

UEi DM515 True RMS Digital Multimeter, 1,000 V, -328 to 2,462°F

Model: DM515 | UPC: 053533508185

This digital multimeter brings together functionality and safety. Use it to measure a number of parameters.

This digital multimeter brings together functionality and safety. Use it to measure a number of parameters.

Sale Price $147.21 USD
Regular Price $173.19 USD
Availability 3 to 4 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your DM515 True RMS Digital Multimeter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your DM515 True RMS Digital Multimeter

UEi DM515 Offers

With the UEi DM515 True RMS Digital Multimeter, you can easily take voltage, amperage, resistance, capacitance and other measurements and conduct tests. It features a rugged design with drop protection, as well as ingress protection against dirt and water.

Features

  • Features 1,000 V, 10 A, resistance, diode test, capacitance, continuity, 1 ms response fast min/max and True RMS accuracy
  • Measures from -328 to 2,462°F (-200 to 1,350°C)
  • High-resolution backlit display lets you see measurements, even in low-light settings
  • Auto shutoff helps preserve battery life
  • Rubber boot with kickstand for easy placement
  • Drop and ingress protected
  • Rated to CAT III 600 V/CAT II 1,000 V

UEi DM515 Specifications

Safety Rating CAT III 600 V/CAT II 1,000 V
AC Voltage 1 to 1,000
DC Voltage 1 to 1,000
AC Amperage 1 to 10
DC Amperage 1 to 10
AC/DC mV 6
AC/DC mA 400
DC μA 600
AC μA 600
Resistance 40 MΩ
Capacitance 10 nF to 9,999 μF
Display Count 6000
Ranging Auto/manual
IP Rating 42
Temperature Range -328 to 2,462°F (-200 to 1,350°C)
Manufacturer Warranty 2-year limited
Click here for complete specifications on the UEi DM515

What's included with the UEi DM515

  • True RMS Digital Multimeter
  • Standard Test Leads Without Caps
  • Alligator Clips
  • 2 x AA Batteries
  • Pouch
  • Manual

UEi DM505 & DM515 Digital Multimeters: Overview


The DM505 is a 1000 V, everyday multimeter with essential functionality and the DM515 is a 1000 V multimeter with HVAC/R functionality. Both are capable of measuring 10 A AC/DC, resistance, diode test, capacitance, audible continuity, micro amps and milliamps. Additionally, the DM515 also measures True RMS and temperature.

Ask a question about UEi DM515 True RMS Digital Multimeter, 1,000 V, -328 to 2,462°F

Customer Reviews for the UEi DM515

UEi DM515 Offers

With the UEi DM515 True RMS Digital Multimeter, you can easily take voltage, amperage, resistance, capacitance and other measurements and conduct tests. It features a rugged design with drop protection, as well as ingress protection against dirt and water.

Features

  • Features 1,000 V, 10 A, resistance, diode test, capacitance, continuity, 1 ms response fast min/max and True RMS accuracy
  • Measures from -328 to 2,462°F (-200 to 1,350°C)
  • High-resolution backlit display lets you see measurements, even in low-light settings
  • Auto shutoff helps preserve battery life
  • Rubber boot with kickstand for easy placement
  • Drop and ingress protected
  • Rated to CAT III 600 V/CAT II 1,000 V
Show More...

UEi DM515 Specifications

Safety Rating CAT III 600 V/CAT II 1,000 V
AC Voltage 1 to 1,000
DC Voltage 1 to 1,000
AC Amperage 1 to 10
DC Amperage 1 to 10
AC/DC mV 6
AC/DC mA 400
DC μA 600
AC μA 600
Resistance 40 MΩ
Capacitance 10 nF to 9,999 μF
Display Count 6000
Ranging Auto/manual
IP Rating 42
Temperature Range -328 to 2,462°F (-200 to 1,350°C)
Manufacturer Warranty 2-year limited
Click here for complete specifications on the UEi DM515

What's included with the UEi DM515

  • True RMS Digital Multimeter
  • Standard Test Leads Without Caps
  • Alligator Clips
  • 2 x AA Batteries
  • Pouch
  • Manual

UEi DM505 & DM515 Digital Multimeters: Overview


The DM505 is a 1000 V, everyday multimeter with essential functionality and the DM515 is a 1000 V multimeter with HVAC/R functionality. Both are capable of measuring 10 A AC/DC, resistance, diode test, capacitance, audible continuity, micro amps and milliamps. Additionally, the DM515 also measures True RMS and temperature.

Ask a question about UEi DM515 True RMS Digital Multimeter, 1,000 V, -328 to 2,462°F

Customer Reviews for the UEi DM515
