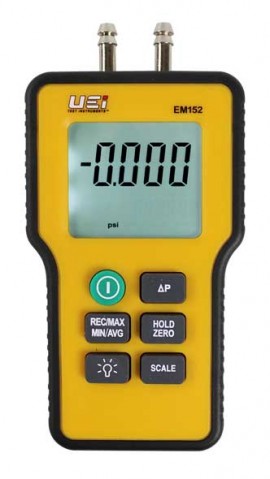

UEi EM152 Dual Differential Digital Manometer, -60 to 60 inH2O

Model: EM152 | UPC: 053533507492

Convenient with an easy-to-read display, this dual input manometer features an intuitive interface and built-in magnet. Additionally, it provides pressure testing, along with a range of -60 to 60 inH2O, and measures in 11 scales.

Convenient with an easy-to-read display, this dual input manometer features an intuitive interface and built-in magnet. Additionally, it provides pressure testing, along with a range of -60 to 60 inH2O, and measures in 11 scales.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

UEI EM700 Differential Manometer-

UEI EM700 Differential Manometer

Model: EM700

The EM700 is a differential manometer that records maximum and minimum pressure values and calculates the timed mean average pressure over a selected interval.

Learn More

UEi EM152 Offers

Features

  • Dual input differential measurement to ±60 inches of water column
  • Measures in 11 scales; inH2O, psi, bar, mBar, kPa, inHG, mmHG, ozin, FtH2O, cmH2O, and kgcm
  • Magnetic mount
  • Auto ranging
  • Backlit display
  • Data hold
  • Min/Max
  • Zero button

Functions

  • Range of -60 to 60 inH2O
  • Differential pressure

Applications

  • Validate pressures in accordance with equipment manufacturer's specification for optimal system efficiency and safety
  • Measure draft, gas supply, manifold or burner pressures
  • Dual input offers users the ability to measure pressure drops across heat exchangers, cooling coils, supply and return registers and filters

UEi EM152 Specifications

Units of Measure
bar Range: ±0.200
Resolution: 0.001
Accuracy (77°F): ±0.3% full scale output
Ounces/Square Inch Range: ±46.60
Resolution: 0.01
Accuracy (77°F): ±0.3% full scale output
psi Range: ±2.900
Resolution: 0.001
Accuracy (77°F): ±0.3% full scale output
inHg Range: ±5.904
Resolution: 0.001
Accuracy (77°F): ±0.3% full scale output
mBar Range: ±200.0
Resolution: 0.1
Accuracy (77°F): ±0.3% full scale output
mmHg Range: ±150.0
Resolution: 0.1
Accuracy (77°F): ±0.3% full scale output
kPa Range: ±20.00
Resolution: 0.01
Accuracy (77°F): ±0.3% full scale output
Kg/Square cm Range: ±0.204
Resolution: 0.001
Accuracy (77°F): ±0.3% full scale output
InH2O Range: ±60
Resolution: 0.01
Accuracy (77°F): ±0.3% full scale output
FtH2O Range: ±6.689
Resolution: 0.001
Accuracy (77°F): ±0.3% full scale output
cmH2O Range: ±203.9
Resolution: 0.1
Accuracy (77°F): ±0.3% full scale output
Click here for complete specifications on the UEi EM152

What's included with the UEi EM152

  • Manometer
  • 2 x Flexible Transparent Silicone Tubing
  • 2 x Barbed Gas Valve Fitting
  • Soft Pouch
  • Battery
  • Manual
  • One-Year Warranty
