With the capability to measure O2 from 0 to 21% and CO from 0 to 4,000 ppm, this combustion analyzer is ideal for performing safety checks.
With the capability to measure O2 from 0 to 21% and CO from 0 to 4,000 ppm, this combustion analyzer is ideal for performing safety checks.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

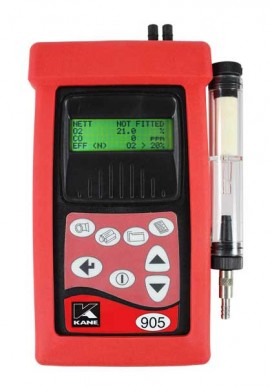

Ideal for installing or servicing industrial or commercial oil, gas or biomass appliances, performing safety checks in a room around appliances or flue draft applications and much more, this UEi K905CONS Handheld Industrial Combustion Analyzer with NO1 and SO2 Sensors measures O2 from 0 to 21%, as well as CO from 0 to 4,000 ppm. The analyzer logs up to 150 individual readings, so you can keep track of your information from job to job.
Features
| Temperature Flue Gas Range | 32 to 2,200°F (0 to 1,200°C) |
| Temperature Inlet Range | 32 to 122°F (0 to 50°C) |
| Oxygen Range | 0 to 25% |
| CO (H2 Compensated) Range | 0 to 4,000 ppm |
| Carbon Monoxide Range | 0 to 100,000 ppm |
| Nitric Oxide (Low) Range | 0 to 100 ppm |
| Pressure | 150 mbar |
| Calculated Carbon Dioxide | 0 to 99.9% |
| Calculated Losses | 0 to 99.9% |
| Calculated Efficiency | 0 to 99.9% |
| Calculated Excess Air | 0 to 2,885% |
| Calculated CO/CO2 Ratio | 0 to 0.9999 |
| Sulfur Dioxide Range | 0 to 5,000 ppm |
| Nitric Oxiode Range | 1 to 5,000 ppm |
| Manufacturer Warranty | 1-year limited |
| Temperature Flue Gas Range | 32 to 2,200°F (0 to 1,200°C) |
| Temperature Inlet Range | 32 to 122°F (0 to 50°C) |
| Oxygen Range | 0 to 25% |
| CO (H2 Compensated) Range | 0 to 4,000 ppm |
| Carbon Monoxide Range | 0 to 100,000 ppm |
| Nitric Oxide (Low) Range | 0 to 100 ppm |
| Pressure | 150 mbar |
| Calculated Carbon Dioxide | 0 to 99.9% |
| Calculated Losses | 0 to 99.9% |
| Calculated Efficiency | 0 to 99.9% |
| Calculated Excess Air | 0 to 2,885% |
| Calculated CO/CO2 Ratio | 0 to 0.9999 |
| Sulfur Dioxide Range | 0 to 5,000 ppm |
| Nitric Oxiode Range | 1 to 5,000 ppm |
| Manufacturer Warranty | 1-year limited |
