Use this digital multimeter to measure voltage, current, frequency, capacitance, resistance and temperature. The results are easy to read on the LCD.
Use this digital multimeter to measure voltage, current, frequency, capacitance, resistance and temperature. The results are easy to read on the LCD.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Toolbox category for similar products.
Or let's do a search and help you find what you need:

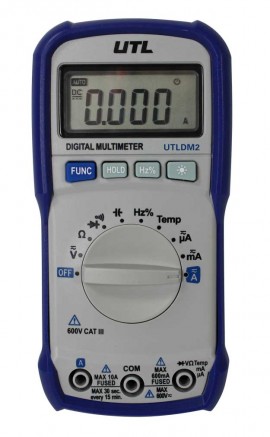

With this UEi UTLDM2 Auto Ranging Digital Multimeter, you can easily measure voltage, current, frequency, capacitance, resistance and temperature and perform diode tests with the included test leads. The LCD is comfortable to read, and the leads can be stored on the back of the unit.
Features
| Voltage | 600 mV to 600 VDC, 6 to 600 VAC |
| AC/DC Current | 600 μA to 10 A |
| Resistance | 600 Ω to 60 MΩ |
| Diode Test | 0.5 to 0.7 V range, 1 mA maximum test current, 3 V open circuit voltage |
| Temperature | -4 to 1,832°F (-20 to 1,000°C) with 1°F (1°C) resolution |
| Capacitance | 6 nF to 60 mF |
| Continuity Test | 250 Vrms overload protection, 1 V open circuit voltage |
| Display | 3.75 digits, 6,000 count, LCD |
| Power Supply | 9 V battery |
| Frequency | 9.999 Hz to 10 MHz |
| Manufacturer Warranty | 1-year limited |
