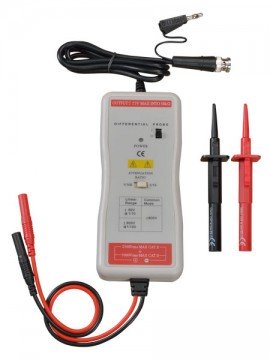

UNI-T UT-P30 Differential Scope Probe, 100 MHz, 800 V

Model: UT-P30 | UPC: 6935750540756

UNI-T UT-P30 Differential Scope Probe, 100 MHz, 800 V-

Downloads:

More Uni-Trend Technology Products

Ask an Expert

UNI-T UT-P30 Differential Scope Probe, 100 MHz, 800 V

Model: UT-P30 | UPC: 6935750540756

A general purpose 100 MHz/800 V differential probe compatible with all Uni-T oscilloscopes.

A general purpose 100 MHz/800 V differential probe compatible with all Uni-T oscilloscopes.

Your Price $379.00 USD
Availability 2 to 3 Weeks
Quantity

Uni-Trend Technology UT-P30 Offers

A differential probe is used when you want to convert a high voltage into a low voltage. Display the waveform on your oscilloscope through the BNC connector. With its 100 MHz bandwidth, you can use this probe for your high-frequency testing.

Features

  • Maximum voltage is 800 V
  • 100 MHz bandwidth
  • Dual attenuation modes for 10:1 and 100:1
  • Input voltage ranges (DC+AC PEAKTOPEAK) ≤80 Vfor x10,(about 29 V RMS )/≤800 Vfor x100,(about 290 V RMS)
  • Probe Accuracy: ±1%
  • Rejection rate on common modes are 60 Hz:＞80 dB; 100 Hz:＞60 dB; 1 MHz:＞50 dB
  • Output impedance: 50 Ω

Uni-Trend Technology UT-P30 Specifications

Probe Type Differential
Probe Attenuation 10:1/100:1
Bandwidth (MHz) 100 MHz
Voltage ±800 Vpp

What's included with the Uni-Trend Technology UT-P30

  • Differential Scope Probe
  • 2 x Voltage Proves
  • One-Year Warranty

Ask a question about UNI-T UT-P30 Differential Scope Probe, 100 MHz, 800 V

Customer Reviews for the Uni-Trend Technology UT-P30

Uni-Trend Technology UT-P30 Offers

A differential probe is used when you want to convert a high voltage into a low voltage. Display the waveform on your oscilloscope through the BNC connector. With its 100 MHz bandwidth, you can use this probe for your high-frequency testing.

Features

  • Maximum voltage is 800 V
  • 100 MHz bandwidth
  • Dual attenuation modes for 10:1 and 100:1
  • Input voltage ranges (DC+AC PEAKTOPEAK) ≤80 Vfor x10,(about 29 V RMS )/≤800 Vfor x100,(about 290 V RMS)
  • Probe Accuracy: ±1%
  • Rejection rate on common modes are 60 Hz:＞80 dB; 100 Hz:＞60 dB; 1 MHz:＞50 dB
  • Output impedance: 50 Ω
Show More...

Uni-Trend Technology UT-P30 Specifications

Probe Type Differential
Probe Attenuation 10:1/100:1
Bandwidth (MHz) 100 MHz
Voltage ±800 Vpp

What's included with the Uni-Trend Technology UT-P30

  • Differential Scope Probe
  • 2 x Voltage Proves
  • One-Year Warranty

Ask a question about UNI-T UT-P30 Differential Scope Probe, 100 MHz, 800 V

Customer Reviews for the Uni-Trend Technology UT-P30
