UNI-T UT-P32 Differential Scope Probe, 50 MHz, 3000 V

Model: UT-P32 | UPC: 6935750540770

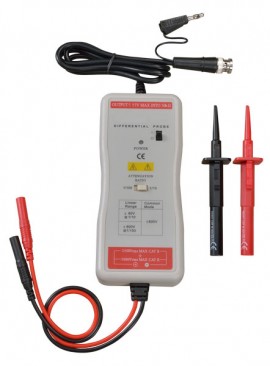

UNI-T UT-P32 Differential Scope Probe, 50 MHz, 3000 V-

Downloads:

More Uni-Trend Technology Products

Ask an Expert

UNI-T UT-P32 Differential Scope Probe, 50 MHz, 3000 V

Model: UT-P32 | UPC: 6935750540770

A general purpose 50 MHz/3000 V differential probe compatible with all Uni-T oscilloscopes.

A general purpose 50 MHz/3000 V differential probe compatible with all Uni-T oscilloscopes.

Your Price $820.00 USD
Availability 2 to 3 Weeks
Quantity

Uni-Trend Technology UT-P32 Offers

A differential probe is used when you want to convert a high voltage into a low voltage. Display the waveform on your oscilloscope through the BNC connector. With its 50 MHz bandwidth, you can use this probe for a variety of testing scenarios.

Features

  • Maximum voltage is 3000 V
  • 50 MHz bandwidth
  • Dual attenuation modes for 100:1 and 1000:1
  • Input voltage ranges (DC+AC PEAKTOPEAK) ≤300 V for x100, (about 100 V RMS and 150 V DC)/≤3000 V for x1000, (about 1000 V RMS and 1500 V DC)
  • Probe Accuracy: ±1%
  • Rejection rate on common modes are 60 Hz:＞80 dB; 100 Hz:＞60 dB; 1 MHz:＞50 dB
  • Output impedance: 50Ω

Uni-Trend Technology UT-P32 Specifications

Probe Type Differential
Probe Attenuation 100:1/1000:1
Bandwidth (MHz) 50 MHz
Voltage ±3000 Vpp

What's included with the Uni-Trend Technology UT-P32

  • Differential Scope Probe
  • 2 x Voltage Proves
  • One-Year Warranty
