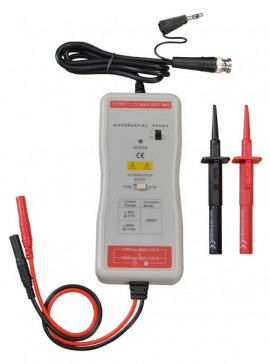

UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV

Model: UT-P33 | UPC: 6935750540787

A general purpose 120 MHz/14 kV differential probe compatible with all Uni-T oscilloscopes.

A general purpose 120 MHz/14 kV differential probe compatible with all Uni-T oscilloscopes.

Your Price $1396.00 USD
Availability 2 to 3 Weeks
Quantity

Uni-Trend Technology UT-P33 Offers

A differential probe is used when you want to convert a high voltage into a low voltage. Display the waveform on your oscilloscope through the BNC connector. With its 120 MHz bandwidth, you can use this probe for your high-frequency testing.

Features

  • Maximum voltage is 14 kV
  • 120 MHz bandwidth
  • Dual attenuation modes for 100:1 and 1000:1
  • Input voltage ranges (DC+AC PEAKTOPEAK) ≤1.4 KV for x100, (about 490 V RMS)/≤14 KV for x1000, (about 4900 V RMS)
  • Probe Accuracy: ±1%
  • Rejection rate on common modes are 60 Hz:＞80 dB; 100 Hz:＞60 dB; 1 MHz:＞50 dB
  • Output impedance: 50Ω

Uni-Trend Technology UT-P33 Specifications

Probe Type Differential
Probe Attenuation 10:1/100:1
Bandwidth (MHz) 120 MHz
Voltage ±14 kVpp

What's included with the Uni-Trend Technology UT-P33

  • Differential Scope Probe
  • 2 x Voltage Proves
  • One-Year Warranty

Ask a question about UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV

Customer Reviews for the Uni-Trend Technology UT-P33

Uni-Trend Technology UT-P33 Offers

A differential probe is used when you want to convert a high voltage into a low voltage. Display the waveform on your oscilloscope through the BNC connector. With its 120 MHz bandwidth, you can use this probe for your high-frequency testing.

Features

  • Maximum voltage is 14 kV
  • 120 MHz bandwidth
  • Dual attenuation modes for 100:1 and 1000:1
  • Input voltage ranges (DC+AC PEAKTOPEAK) ≤1.4 KV for x100, (about 490 V RMS)/≤14 KV for x1000, (about 4900 V RMS)
  • Probe Accuracy: ±1%
  • Rejection rate on common modes are 60 Hz:＞80 dB; 100 Hz:＞60 dB; 1 MHz:＞50 dB
  • Output impedance: 50Ω
Show More...

Uni-Trend Technology UT-P33 Specifications

Probe Type Differential
Probe Attenuation 10:1/100:1
Bandwidth (MHz) 120 MHz
Voltage ±14 kVpp

What's included with the Uni-Trend Technology UT-P33

  • Differential Scope Probe
  • 2 x Voltage Proves
  • One-Year Warranty

Ask a question about UNI-T UT-P33 Differential Scope Probe, 120 MHz, 14 kV

Customer Reviews for the Uni-Trend Technology UT-P33
