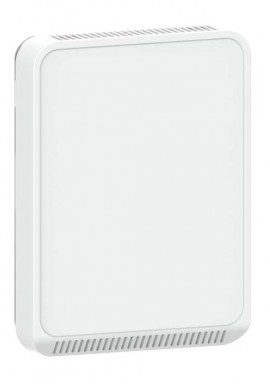

Veris HW2XA2G Wall Humidity Sensor, 10k CPC thermistor

Model: HW2XA2G

Versatile and easy to use, this humidity wall sensor features a blank white user interface. Easy to install, this sensor features a 10k thermistor with an 11k shunt. With 2% measurement accuracy, the unit provides reliable results and comes equipped with a temperature and humidity sensor.

Versatile and easy to use, this humidity wall sensor features a blank white user interface. Easy to install, this sensor features a 10k thermistor with an 11k shunt. With 2% measurement accuracy, the unit provides reliable results and comes equipped with a temperature and humidity sensor.

Sale Price $156.63 USD
Regular Price $616.43 USD
Availability 2 to 3 Weeks
Quantity

Veris HW2XA2G Offers

Compatible with various BAS controllers, this wall-mount humidity sensor provides flexible and reliable humidity and temperature control.

Features

  • Thin-film capacitive sensor element recovers from 100% saturation
  • Replace element in the field maintains accuracy and minimize downtime
  • Fully interchangeable element to 1% or 2% accuracy with NIST calibration certificate
  • Large wiring terminals on baseplate and snap-on covers with security screw simplify installation and service
  • Polarity insensitive, two-wire 4 to 20 mA or 3-wire 0 to 5/0 to 10 Vdc versions
  • Flexible systems compatibility saves time in the field, stock fewer devices
  • Calibration-free interchangeable NIST traceable HS element

Applications

  • Controlling HVAC/R systems for improved comfort and energy savings
  • Museums, schools, printing shops, and other locations requiring humidity control
  • Facilitating compliance with ASHRAE standards for environmental control and indoor air quality

Veris HW2XA2G Specifications

Color Matte white
Electrical Wiring Size Screw terminals, 18 to 24 AWG
Enclosure Material High impact ABS plastic
Humidity Measurement Accuracy: ±2% from 10 to 80% RH at 77°F (25°C)
Range: 0 to 100% RH
Resolution: 0.1% RH
Sensor Type: thin-film capacitive, replaceable
IP Protection IP20
Input Specifications Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
Measurement Type RH / Temperature
Operating Humidity 0 to 95% RH non-condensing
Operating Temperature 32 to 122°F (0 to 50°C)
Output Specifications Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
Outputs Analog
Override Yes
Setpoint Range Temperature: 32 to 122°F (0 to 50°C) / 50 to 95°F (10 to 35°C)
Selectable humidity: 0 to 100% RH
Fan Speed: off, low, medium, high
Setpoint Specifications 0 to 10 Vdc
Temperature, humidity or fan speed (one setpoint type is selectable via dip switch)
Setpoint Yes
Standards EMC EN61000 Series - industrial immunity
Temperature Measurement Range: 32 to 122°F (0 to 50°C)
Resolution: 0.1°F (0.1°C)
Sensor type: thermistor, 10k CPC
Click here for complete specifications on the Veris HW2XA2G

What's included with the Veris HW2XA2G

  • Veris HW2XA2G Wall Humidity Sensor, 10k CPC thermistor
