Winters PLP302 Low Pressure 2.5" Dial, 0/55" Water/Oz, 1/4" Bottom

Model: PLP302 | UPC: 628311203172

Winters PLP302 Low Pressure 2.5" Dial, 0/55" Water/Oz, 1/4" Bottom-

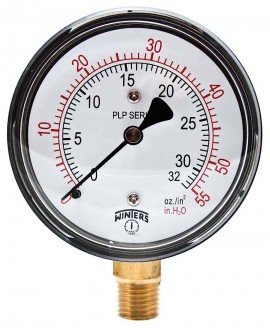

Image is for reference only, refer to product info for complete details.


Downloads:

Winters PLP302 Low Pressure 2.5" Dial, 0/55" Water/Oz, 1/4" Bottom

Model: PLP302 | UPC: 628311203172

Provide highly accurate reading of low pressures.

Provide highly accurate reading of low pressures.

Sale Price $65.05 USD
Regular Price $118.27 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PLP302 Low Pressure 2.5" Dial

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PLP302 Low Pressure 2.5" Dial

Winters PLP302 Offers

Features

  • Brass or stainless steel wetted parts
  • Ranges from 15" H2O/oz to 10 psi
  • Over-Pressure protection on some models (OP)
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

Applications

  • Gaseous media - corrosive/non-corrosive
  • Natural gas pressure
  • Air flow
  • Leak flow
  • Vacuum pumps
  • Air compressors
  • Air filters
  • Gas burners
  • Vacuum ovens
  • Suction regulators
  • Respirators

Winters PLP302 Specifications

Dial Size 2.5"
Case Material Steel
Connection 1/4" Bottom
Capsule Movement Socket Brass
Range 0/55" water/vac
Pointer Aluminum, anodized black
Welding Solder/brazed
Working Pressure 60% of full scale value (fluctuating) 75% of full scale value (static)
Over-Pressure Limit 30% of full scale value, up to 200% with over-pressure protection (OP) option
Ambient/Process Temperature -40 to 150°F (-40 to 65°C)
Accuracy ±3-2-3% ANSI/ASME Grade B
Enclosure Rating IP52
Click here for complete specifications on the Winters PLP302

What's included with the Winters PLP302

  • Winters PLP302 Low Pressure 2.5" Dial, 0/55" Water/Oz, 1/4" Bottom

Ask a question about Winters PLP302 Low Pressure 2.5" Dial, 0/55" Water/Oz, 1/4" Bottom

Customer Reviews for the Winters PLP302
