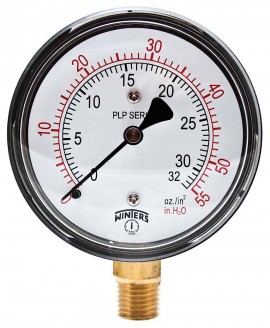

Image is for reference only, refer to product info for complete details.
Provide highly accurate reading of low pressures.
Provide highly accurate reading of low pressures.
Features
Applications
| Dial Size | 2.5" |
| Case Material | Steel |
| Connection | 1/4" Bottom |
| Capsule Movement Socket | Brass |
| Range | 0/200" water/vac |
| Pointer | Aluminum, anodized black |
| Welding | Solder/brazed |
| Working Pressure | 60% of full scale value (fluctuating) 75% of full scale value (static) |
| Over-Pressure Limit | 30% of full scale value, up to 200% with over-pressure protection (OP) option |
| Ambient/Process Temperature | -40 to 150°F (-40 to 65°C) |
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
