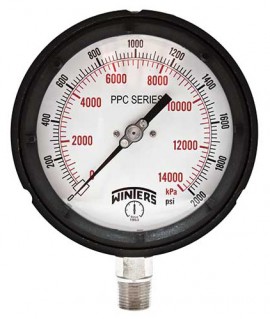

Image is for reference only, refer to product info for complete details.
Features a solid phenolic front and polypropylene pressure relief back safety case, along with a micrometer adjustable pointer for ease in calibration. It has a pressure range of 30"-0 to 160 psi/kPa, ±0.5% accuracy, stainless steel socket and tube, and a 1/2" NPT bottom connection.
Features a solid phenolic front and polypropylene pressure relief back safety case, along with a micrometer adjustable pointer for ease in calibration. It has a pressure range of 30"-0 to 160 psi/kPa, ±0.5% accuracy, stainless steel socket and tube, and a 1/2" NPT bottom connection.
Features
Applications
| Dial | 4.5" (115mm) white aluminum with black and red markings |
| Case | Black phenolic with pressure relief back, solid front, integral back flange |
| Solid Wall | Phenolic |
| Pressure Relief Back | Polypropylene |
| Window | Polycarbonate |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Socket | 316L SS |
| Connection | 1/2" NPT - bottom |
| Process Temperature | -40 to 250°F (-40 to 120°C) |
| Enclosure Rating | IP65 |
| Dial | 4.5" (115mm) white aluminum with black and red markings |
| Case | Black phenolic with pressure relief back, solid front, integral back flange |
| Solid Wall | Phenolic |
| Pressure Relief Back | Polypropylene |
| Window | Polycarbonate |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Socket | 316L SS |
| Connection | 1/2" NPT - bottom |
| Process Temperature | -40 to 250°F (-40 to 120°C) |
| Enclosure Rating | IP65 |
