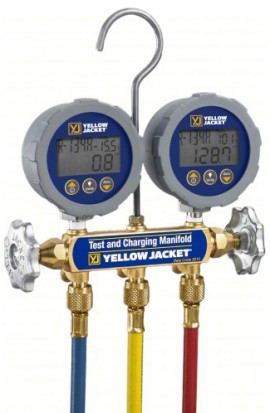

3-1/8" backlit LCD gauges provide easy-to-read accurate measurements for system pressures. This gauge is capable of handling maximum pressures of 800 psi, so there are no worries about over-pressurizing. Pre-programmed with 21 of the most common refrigerants, the YELLOW JACKET Digital gauges will provide clear, swift and accurate pressure measurements for all your system applications.
3-1/8" backlit LCD gauges provide easy-to-read accurate measurements for system pressures. This gauge is capable of handling maximum pressures of 800 psi, so there are no worries about over-pressurizing. Pre-programmed with 21 of the most common refrigerants, the YELLOW JACKET Digital gauges will provide clear, swift and accurate pressure measurements for all your system applications.
| Pressure Range | -14.7 to 800 psi (-1 to 54.4 bar) |
| Unit (Pressure) | psi / bar / MPa / kg/cm² / kPa |
| Working Temperature | 14 to 140°F (-10 to 60°C) |
| Pressure Accuracy | ±0.5% F.S @71.682.4°F (@2228°C) |
| Unit (Temperature) | °F/°C |
| Working Humidity | 35 to 85% |
| Sampling Rate | 1.2 second maximum |
| Auto-off | 10 minutes |
| Zero Pressure Function | Yes |
| Power Supply | Battery CR123A (3 V, 1400 mAh) |
| Battery Life | 2 years for continuous operation without backlight |
| Warranty | One year |
| Refrigerants | R-22, R-23, R-32, R-124, R-134A, R-290, R-404A, R-407C, R-407F, R-408A, R-410A, R-417A, R-427A, R-444B, R-448A, R-449A, R-452A, R-507, R-600A, R-1234YF, R-1270 |
