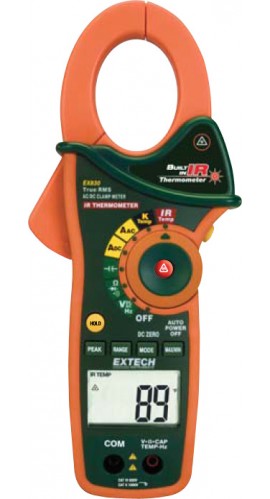

Extech EX830-NIST True RMS Clamp Meter/IR Thermometer, 1000A AC/DC, with Traceable Certificate includes Traceable Calibration Certificate

Model: EX830-NIST | UPC: 793950398319

Extech EX830-NIST True RMS Clamp Meter/IR Thermometer, 1000A AC/DC, with Traceable Certificate-

Downloads:

More Extech Products

Ask an Expert

Extech EX830-NIST True RMS Clamp Meter/IR Thermometer, 1000A AC/DC, with Traceable Certificate includes Traceable Calibration Certificate

Model: EX830-NIST | UPC: 793950398319

Ideal for industrial applications the 800 series full size 1000A clamps feature a built-in Infrared thermometer and rugged double molded housing. Includes limited NIST traceable certificate with full data and uncertainties. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Ideal for industrial applications the 800 series full size 1000A clamps feature a built-in Infrared thermometer and rugged double molded housing. Includes limited NIST traceable certificate with full data and uncertainties. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Your Price $399.99 USD
Availability 9 to 10 Weeks
Quantity

Extech EX830-NIST Offers

Features

  • Non-contact InfraRed Temperature measurements with laser pointer
  • True RMS Current and Voltage measurements
  • Peak hold captures inrush currents and Transients
  • MultiMeter functions include AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Diode, Continuity and Type K Thermometer
  • 1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
  • 4000 count backlit display
  • Autoranging with manual range button
  • Features include Data Hold and Min/Max, DC Zero, Auto Power off
  • Certificate of Calibration traceable to N.I.S.T.

Extech EX830-NIST Specifications

Unique Features Data Hold, Rugged Double Molded Housing
Maximum Current AC 1000 A
Minimum Current AC 0.1 A (100 mA)
Maximum Current DC 1000 A
Maximum Voltage AC 600 V
Minimum Voltage AC 0.1 mV
Basic Voltage Accuracy ACV: ± 2% Rdg + 5D; DCV: ± 2% Rdg + 2D
Digits Display 3.75
Maximum Conductor Size 1.7 IN
Product Weight 13.6 OUNCES (0.85 LBS)
Product Height 2 IN
Product Length 10.6 IN
Product Width 4.3 IN
Click here for complete specifications on the Extech EX830-NIST

What's included with the Extech EX830-NIST

  • Test Leads
  • Limited NIST Traceable Certificate
  • 9V Battery
  • General Purpose Type K Probe
  • Case
