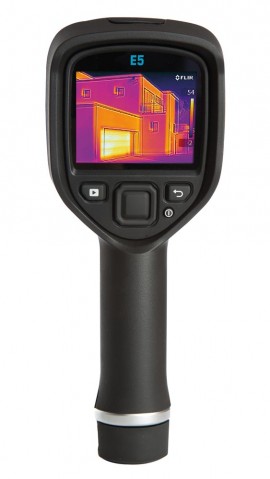

FLIR E5 Thermal Imaging Camera with WiFi, 10800 Pixels (120 x 90)

Model: 63909-0904 | Order No: E5 | UPC: 845188005146

Detects energy waste, hidden moisture issues and electrical overheating. Features a 120 x 90 9Hz infrared detector with a 0.10°C thermal sensitivity and a -20 to 250°C (-4 to 482°F) temperature range.

Detects energy waste, hidden moisture issues and electrical overheating. Features a 120 x 90 9Hz infrared detector with a 0.10°C thermal sensitivity and a -20 to 250°C (-4 to 482°F) temperature range.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

FLIR E5 Pro Thermal Imaging Camera with Ignite Cloud, 160 x 120, -4 to 752°F-

FLIR E5 Pro Thermal Imaging Camera with Ignite Cloud, 160 x 120, -4 to 752°F

Model: 13301-0101 | Order No: E5 PRO

See moisture damage, heat loss, electrical, mechanical, and other thermal issues clearly with this infrared camera that features optics always in focus and a large, sharp, 640 x 480 touchscreen. In addition, it recognizes the location of problems thanks to MSX® technology, which embosses key visual details onto thermal images.


FLIR E5 Offers

The E5 now features Multi-Spectral Dynamic Imaging (MSX) for easier interpretation of an image - adds visible spectrum definition to IR images by detecting the edges of objects and including that detail in the thermal image such as numbers, signage, labels and other identifiable features.

Features

  • Wi-Fi connectivity to smartphones and tablets via the FLIR Tools Mobile app
  • Display: 3" color LCD
  • On-board 640 x 480 Digital Camera
  • Easy-to-use, weighs only 1.2lbs
  • 2% accuracy
  • File format: Radiometric jpg
  • Swappable Li-ion Battery with 4 hour life
  • Spot Measurement mode
  • Simultaneous storage of IR/Visual/MSX images
  • Thermal Sensitivity: <0.10°C
  • Temperature Range: -20 to 250°C (-4 to 482°F)
  • Measurement Mode: Centerspot, Area Box, Auto Hot/Cold detection
  • Field of View: <45 x 34°
  • Focus: Focus Free

Applications

  • Home weatherization
  • HVAC/R
  • Restoration contractors
  • Building Diagnostics
  • Utility Troubleman
  • Facility Maintenance

FLIR E5 Specifications

IR Resolution (Array Size) 10,800 (120 x 90)
Thermal Sensitivity <0.10°C
Field of View 45° x 34°
Temperature Range -20 to 250°C (-4 to 482°F)
Accuracy ±2% rdg. or 2°C
Measurement Modes Center spot, 1 Area Box (Min/Max)
Frame Refresh 9 Hz
Thermal Palettes Iron, Rainbow, Greyscale
Focus Focus free
Display Screen 3.0" Landscape
Memory Storage USB, 1000 images
Click here for complete specifications on the FLIR 63909-0904

What's included with the FLIR E5

  • E5 Thermal Imager
  • Power Supply/Charger with Four Plugs
  • Rechargeable Battery
  • USB Cable
  • Tubing
  • Hard Carrying Case
  • Battery
