What Is It?

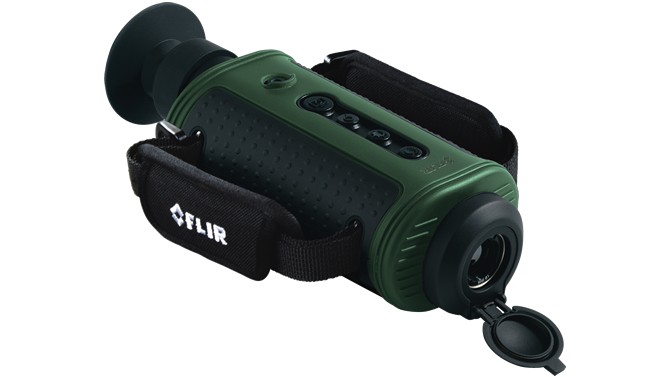

The TS32r is a long range thermal imager that is at home in the hands or mounted on a tripod for added stability. It takes the regular body and core of a TS32 and adds a permenantly attached 65mm lens for much more magnification than its wide angle brothers.

Who Uses It?

The TS32r is very popular with wildlife management professionals and conservation officers who are scanning at long distances. The 65mm lens has also proven popular with sportsmen hunting from treestands or blinds where movement is less of an issue and distance is a priority.

What Is It Designed For?

The TS32r is built to provide long range thermal imaging to outdoor users who need a reasonably light unit to reach out past 500 yards.

What Is It Capable Of?

The Pro upgrade allows the TS32r to snap photographs, and a hot-shoe tripod mount can provide video out capability. This has made it a viable option for surviellance teams and any user looking to record thermal evidence at distance. The 60mm lens means that the TS32r is not ideal for closer range reflexive work, where the field of view may be too narrow.

FLIR Scout TS32r Series Key Features

• Shuttered Eyepiece - Keeps light from coming out of the viewfinder and avoids alarming animals or other target subjects.
• 65 mm lens - with 7° field of view.
• Rugged design - All-weather design is built to withstand the demands of day-in, day-out rugged outdoor use. It even floats!
• Hot Shoe Attachment - The included "hot shoe" attachment provides power-in and RCA composite video-out connections while maintaining the camera's tripod mounting capability.
• Two-sided Hand Strap - Accommodates both left-handed and right-handed users.
• USB 2.0 Connection - Permits rapid transfer of still images and video from the Scout to a PC.
• Battery Compartment - Four rechargeable AA NiMH batteries are good for more than five hours of continuous operation. Scout also runs on standard non-rechargeable alkaline and Lithium Ion AA batteries.
• See people - keep track of the rest of your hiking or camping party in the darkest nights, and even when they're obscured by light foliage.
• See animals - everything gives off heat, so animals can't use their natural camouflage to hide from Scout. Discover those hard-to-spot animals that you've always wanted to see, day and night.
• Track game - sportsmen can use Scout to track wounded animals by following their heat signatures directly, or by detecting signs they leave behind like blood trails and foot prints.
• Navigate - no more losing the trail at night or in bad visibility; with Scout, you'll be able to navigate just as well at night as you can during the day.
• Stay safe - Scout's thermal night vision technology lets you see clearly through smoke, dust, and light fog so you can stay safe in the outdoors when conditions deteriorate.
• Lightweight and rugged - Scout is rugged, fully submersible, and built to last. Weighing less than a pound-and-a-half, it won't drag you down.
• Easy to use - direct, push-button access to all camera controls make Scout easy to use, even with gloves on!
• See more, and see farther, than with other night vision technologies - because Scout sees clearly without any light whatsoever, it can see farther at night than other imaging technologies that need ambient light to work, and can see heat sources that these other cameras could never find.
• There are dozens of at-home uses for Scout as well - including home security, location of heat leaks, and detection of water damage. Its ¼ x 20 tripod mounting hole and video output make it easy to mount on an ATV, pickup, or SUV.

FLIR Scout TS32r Series Specifications

	FLIR Scout TS32r	FLIR Scout TS32r Pro
Resolution	320 x 240	320 x 240
Series	Scout TS	Scout TS
Range	1,400 Yards	1,400 Yards
SD/SDHC Card Enabled
Video Out
Still Image/Video Storage
Size	10.96" x 3.33" x 2.69"	10.96" x 3.33" x 2.69"
Operating/Storage Temperature	-4°F to 140°F (-20°C to 60°C)	-4°F to 140°F (-20°C to 60°C)
Weight (w/o lens)	2.17 lbs	2.17 lbs
Field of View	7° x 5°	7° x 5°
2x E-Zoom FOV
4x E-Zoom FOV
Polarity	White Hot, Black Hot, InstAlert™	White Hot, Black Hot, InstAlert™
Viewfinder Video Output	NTSC or PAL composite video	NTSC or PAL composite video
External Video	320 x 240 NTSC or PAL	320 x 240 NTSC or PAL
Startup	2 Seconds	2 Seconds
E-Zoom	2x	2x
Freeze Frame
Battery	AA NiMH Batteries (included) or Li-Ion or Alkaline AA	AA NiMH Batteries (included) or Li-Ion or Alkaline AA
Rating	IP-67	IP-67

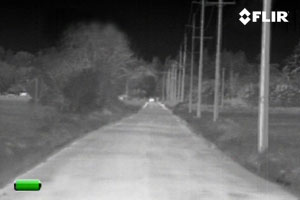

	100 Yards 250 Yards 500 Yards 750 Yards 1000 Yards	100 Yards 250 Yards 500 Yards 750 Yards 1000 Yards

FLIR TS32R Specifications

What's included with the FLIR TS32R

• Neck Lanyard
• Video Cable
• Operator's Manual
