FLIR Si124-LD Industrial Acoustic Imaging Camera for compressed air leak detection, 2 to 65 kHz, 800 x 480

Model: Si124-LD | Order No: T912184 | UPC: 7332558029688

FLIR Si124-LD Industrial Acoustic Imaging Camera for compressed air leak detection, 2 to 65 kHz, 800 x 480-

Downloads:

More FLIR Products

Ask an Expert

FLIR Si124-LD Industrial Acoustic Imaging Camera for compressed air leak detection, 2 to 65 kHz, 800 x 480

Model: Si124-LD | Order No: T912184 | UPC: 7332558029688

Get your compressed air leak detection program up and running in minutes with this acoustic imaging camera ideal for locating pressurized leaks in compressed air systems. In addition, it can identify air leaks 10x faster, and the 124 microphones produce precise acoustic imagery that visually displays ultrasonic information.

Get your compressed air leak detection program up and running in minutes with this acoustic imaging camera ideal for locating pressurized leaks in compressed air systems. In addition, it can identify air leaks 10x faster, and the 124 microphones produce precise acoustic imagery that visually displays ultrasonic information.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

FLIR Si2-PD Industrial Acoustic Imaging Camera for partial discharge detection, 2 to 130 kHz, 1280 × 720-

FLIR Si2-PD Industrial Acoustic Imaging Camera for partial discharge detection, 2 to 130 kHz, 1280 × 720

Model: Si2-PD | Order No: T912305

Ideal for partial discharge detection, this industrial acoustic imaging camera detects, locates, and measures compressed air and gas leaks. In addition, identify PD that are 30 times smaller than ever with this camera, allowing for one-handed operations with automatic tuning, 8x zoom, a 12 MP digital camera, and an IP54 rating.

Learn More

FLIR Si2-LD Industrial Acoustic Imaging Camera, 2 to 130 kHz, 1280 × 720-

FLIR Si2-LD Industrial Acoustic Imaging Camera, 2 to 130 kHz, 1280 × 720

Model: Si2-LD | Order No: T912339

Ideal for pressurized leak detection and mechanical fault detection, this industrial acoustic imaging camera detects, locates, and measures compressed air and gas leaks. In addition, this camera features built-in measurement and cost analysis for industrial gases such as ammonia, hydrogen, CO2, methane, helium, and argon.

Learn More

FLIR Si2-Pro Industrial Acoustic Imaging Camera for partial discharge detection/pressurized leak detection/mechanical fault detection, 2 to 130 kHz, 1280 × 720-

FLIR Si2-Pro Industrial Acoustic Imaging Camera for partial discharge detection/pressurized leak detection/mechanical fault detection, 2 to 130 kHz, 1280 × 720

Model: Si2-Pro | Order No: T912340

Ideal for partial discharge detection, pressurized leak detection, and mechanical fault detection, this industrial acoustic imaging camera detects mechanical faults for early identification of bearing problems. In addition, this camera quantifies the leak rate and cost of industrial gas and compressed air leaks.

Learn More

FLIR Si1-LD Industrial Acoustic Imaging Camera, 2 to 100 kHz, 1280 × 720-

FLIR Si1-LD Industrial Acoustic Imaging Camera, 2 to 100 kHz, 1280 × 720

Model: Si1-LD | Order No: T912537

Designed for compressed air leak detection, this acoustic imaging camera enhances energy efficiency and reduces maintenance costs. In addition, this 12 MP color camera features a frequency range of 2 to 100 kHz, a high-resolution 1280 × 720 display, 8X digital zoom, and 96 microphone-optimized array, ensuring precise visualization of leaks.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

FLIR T912185 RRC 2040 Battery for the Si124-

FLIR T912185 RRC 2040 Battery for the Si124

T912185

FLIR T912186 Battery Charger with power supply for the Si124-

FLIR T912186 Battery Charger with power supply for the Si124

T912186

Adopt a regular maintenance routine with this acoustic imaging camera to help facilities save money on utility bills and delay the expense of installing new compressors. In addition, overlay acoustic images in real-time on a digital camera picture to accurately pinpoint the source of the sound.

Find leaks faster

Detect compressed air leaks up to 10 times faster with ultrasonic imaging vs. traditional methods.

  • Quickly locate leaks and automatically upload, analyze, and classify problems to improve the reliability in production lines
  • Locate leaks precisely, even in loud industrial environments, thanks to high-resolution acoustic images and 124 built-in microphones
  • Instantly view the leak rate onscreen in real time (l/min or CFM)

Reduce costs, save money

Minimize excess costs resulting from compressed-air leaks.

  • Delay the expense of installing new or additional compressors by maintaining existing ones
  • Reduce rejected product that could be caused by pressure loss in pneumatic systems
  • Quantify leak size to understand how much energy was lost and the amount of money saved by discovering the problem
  • Optimize staff time, as minimal training is required to use

Inspect easily

Quantify the severity of air leaks in real time with this smart, convenient tool.

  • Validate problems in real time
  • Upload, store, and backup data; create reports; and conduct deep analysis using FLIR Acoustic Camera Viewer cloud software or Thermal Studio suite desktop software
  • Operate the lightweight camera with one hand for safety and reduced strain
  • Easily review images on the display in bright or dark conditions with this adaptable gain camera

Applications

  • Condition monitoring
  • Manufacturing
  • Electric power utility
  • Oil and gas
  • Industrial

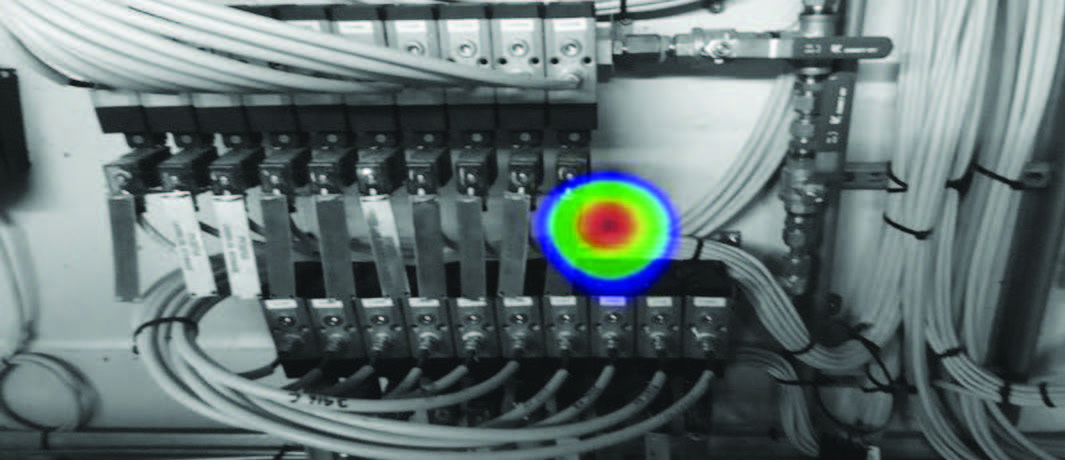

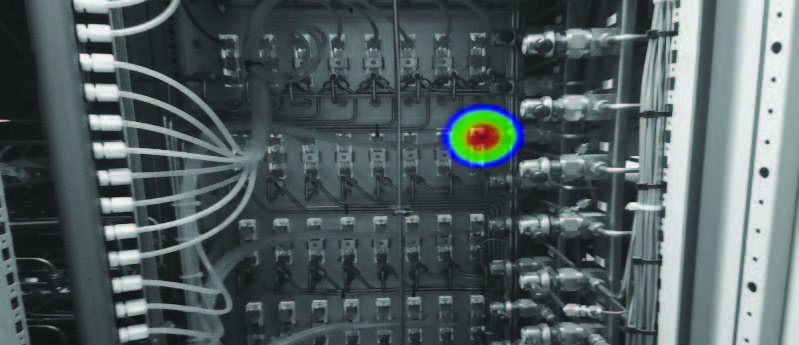

An acoustic image of electrical substation An acoustic image of compressed air leak in factory An acoustic image of compressed air leak in electrical panel
Si2 Camera Update Instructions

How to update your Si2 camera

The Si2 camera can be updated using the Over The Air (OTA) update feature (Cloud based). To update your camera, please follow the instructions in the drop down menu below. Make sure that you read all the steps before attempting the update.

Requirements:

  • Ensure that the battery is fully charged. You will not receive any warning or message before starting the update.
  • Connect the camera to a stable Wi-Fi network that is unrestricted, or to a network where you know that your device can communicate with the Acoustic Viewer (cloud).
  • Make sure that the camera is paired with Acoustic Viewer (cloud).

Download Instructions:

  • 1. Tap the settings menu button to access device info and find the camera's initial firmware version at the bottom of the screen.
  • 2. Please keep your camera on for 10 to 20 minutes. The download process will start automatically once the acoustic viewer recognizes your camera.
  • 3. Wait for the download to complete (this will vary depending on your network speed). You can track the progress of the download in the camera's Device info label at the bottom of the screen. The percentage of the process will be displayed.
    • *NOTE: Please be aware that the download percentage displayed on the screen does not update automatically. To see the latest progress, tap on the back arrow to switch to the live view. Then, go back to the device info screen. The download will continue running in the background even if you switch screens or perform other actions.
  • 4. When the download is completed, the device info will display ...100%. Now you can restart the camera. To restart the camera, first turn it off by long-pressing the power button until it turns red. Wait until the Red LED light stops glowing, then turn it back on by short-pressing the button until it turns green.

Installation:

  • 1. When turning on the camera, the device screen displays that the update is being installed.
  • 2. Wait until the installation is completed, this process takes around 10 minutes.
  • 3. The camera will display the FLIR logo, and then switch to the main screen (live view). The update has been now been installed successfully.

*Note: If the mode selection at start up is enabled, the camera will display the mode selection screen first. Select a mode and then accept to be directed to the live view.

Verification:

  • 1. To confirm that your camera software is up-to-date, look at the text box at the bottom of the screen after pressing the settings menu. The device info displays the latest version of the software v3.0.469.
  • 2. The camera is ready for normal operation.

FLIR Si124-LD Specifications

Key Specifications
Acoustic Measurement 124 low-noise MEMS microphones, real-time sound visualization
Dynamic Range Low limit: <-15 dB (frequency-dependent)
High limit: >120 dB (frequency-dependent)
Bandwidth 2 to 65 kHz, adjustable range
Distance From 1 to 430' (0.3 to 130 m)
Leak Detection and Quantification Automatic leak recognition including estimated leak size and annual cost
Leak Rate In typical industrial environment:
>0.032 L/minute at 3 bar from 9.8' (3 m)
>0.05 L/minute at 3 bar from 32.8' (10 m)

Absolute minimum detection in quiet environment: 0.016 L/minute at 1.2 bar from 1' (0.3 m)
User Interface
Display Size: 5" (12.7 cm), 800 x 480
Color: 24 bit RGB
Brightness: 1000 cd/m2 (adjustable)
Input Device Resistive touchscreen
Power On Indicator Red LED
Video Image Resolution 800 x 480
Camera FOV 62 x 49°
Frame Rate Video: 25 fps
Acoustic: 30 fps
Zoom 2x digital zoom
Communication and Data Storage
Data Transfer Wi-Fi 2.4 and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
USB memory stick
Storage Internal: 32 GB/2000 snapshots (typical) SD card, non-removable
External: 8 GB/500 snapshots (typical) USB mass storage, provided with device
General Specifications
Power Supply Camera power input:
Nominal input voltage: 12 V
Maximum input: 15 V, 2.5 A

Replaceable battery:
Li-ion rechargeable battery pack (RRC 2040): 10.8 V, 3.35 Ah, 36.2 Wh
Usage: More than 2 hours (depends on ambient conditions)
Charge time: 4 to 6 hours
Maximum output: 12.6 V, 4 A

Battery charger:
Input: 19 to 26 V DC, 2.8 A
Maximum output: 17.4 V DC, 4.8 A
Environmental Conditions Operating temperature: 14 to 122°F (-10 to 50°C)
Storage temperature: -4 to 158°F (-20 to 70°C)
Relative humidity: Recommended 0 to 90%
Dimensions 12.4 x 6.6 x 6.3" (315 x 169 x 160 mm)
Weight 2.38 lbs (1.08 kg)
Click here for complete specifications on the FLIR Si124-LD

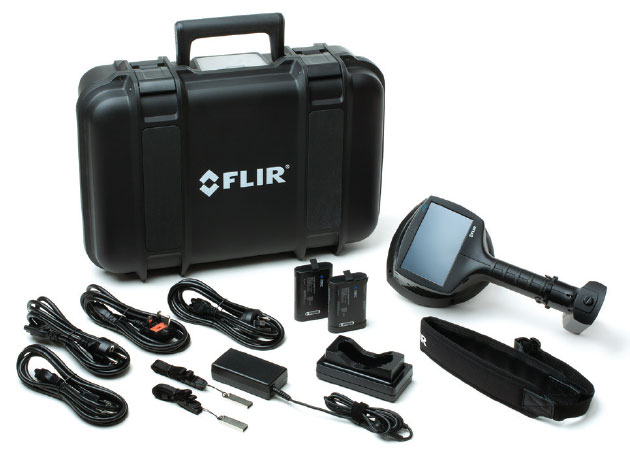

What's included with the FLIR Si124-LD

  • Camera
  • USB Memory Stick
  • Neckstrap
  • Handstrap
  • Hard Carrying Case
  • 2 x Batteries
  • Battery Charger
  • Printed Documentation
  • Thermal Studio Plug-In
  • Two-Year Warranty

Click on a category to view a selection of compatible accessories with the FLIR Si124-LD Industrial Acoustic Imaging Camera for compressed air leak detection, 2 to 65 kHz, 800 x 480.

FLIR T912185 RRC 2040 Battery for the Si124 T912185
Compatible with the Si124, Si124-PD, and Si124-LD industrial acoustic imaging cameras (2 to 65 kHz versions), this battery features state-of-the-art lithium-ion cells. In addition, it offers more than two hours of operation and has an integrated LED State of Charge (SoC) indicator.



FLIR T912186 Battery Charger with power supply for the Si124 T912186
Intended for use with industrial acoustic imaging cameras, this battery charger with power supply is compatible with the Si124, Si124-PD, and Si124-LD cameras (2 to 65 kHz versions).
