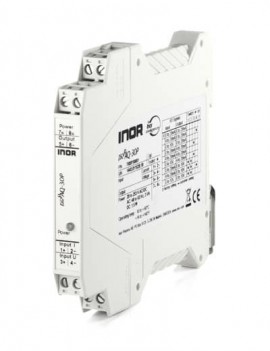

The Isolation Transmitter IsoPAQ-30P is a low-cost transmitter used for basic isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals. Due to the calibrated range selection of the input/output signals and the universal power supply, IsoPAQ-30P provides excellent flexibility and low storage and installation costs. The high reliability ensures a safe system operation and low maintenance costs.
The Isolation Transmitter IsoPAQ-30P is a low-cost transmitter used for basic isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals. Due to the calibrated range selection of the input/output signals and the universal power supply, IsoPAQ-30P provides excellent flexibility and low storage and installation costs. The high reliability ensures a safe system operation and low maintenance costs.
Features
| Type of Input | Active |
| No. of Channels | 1 channel |
| Input Signal | 0 to 20 mA 4 to 20 mA 0 to 10 V |
| Output Signal | 0 to 20 mA 4 to 20 mA 0 to 10 V |
| Configuration | Calibrated range selection |
| Typical Accuracy | 0.3% FS |
| Isolation Level | 2.5 kV, 50 Hz |
| Working Voltage | 600 VAC/DC |
| Power Supply | 20 to 253 VAC/DC |
| Cut-Off Frequency (-3 dB) | 1 kHz |
| Ambient Temperature | 50 to 140°F (10 to 60°C) |
| Plug-In Screw Terminals | Yes |
| Housing Width | 0.49" (12.5 mm) |
| Installation Depth | 4.09" (104 mm) |
| Type of Input | Active |
| No. of Channels | 1 channel |
| Input Signal | 0 to 20 mA 4 to 20 mA 0 to 10 V |
| Output Signal | 0 to 20 mA 4 to 20 mA 0 to 10 V |
| Configuration | Calibrated range selection |
| Typical Accuracy | 0.3% FS |
| Isolation Level | 2.5 kV, 50 Hz |
| Working Voltage | 600 VAC/DC |
| Power Supply | 20 to 253 VAC/DC |
| Cut-Off Frequency (-3 dB) | 1 kHz |
| Ambient Temperature | 50 to 140°F (10 to 60°C) |
| Plug-In Screw Terminals | Yes |
| Housing Width | 0.49" (12.5 mm) |
| Installation Depth | 4.09" (104 mm) |
