Designed for fast electrical and building fault-finding, this thermal camera reads a 120 x 90 detector at 60 mK sensitivity, revealing subtle temperature differences from -4 to 1022°F (-20 to 550°C). Focus-free optics, a 2 MP visible-light sensor, and image-fusion modes help technicians document issues and share files through the Thermography mobile app.
Designed for fast electrical and building fault-finding, this thermal camera reads a 120 x 90 detector at 60 mK sensitivity, revealing subtle temperature differences from -4 to 1022°F (-20 to 550°C). Focus-free optics, a 2 MP visible-light sensor, and image-fusion modes help technicians document issues and share files through the Thermography mobile app.

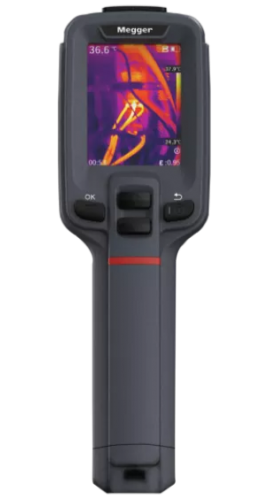

The entry point to Megger's TC thermal-camera line, the TC120 brings thermal fault-finding within reach for everyday electrical and building work. Focus-free optics and super-resolution reconstruction to 240 x 180 keep imagery sharp, while automatic range switching covers -4 to 1022°F (-20 to 550°C). A 2 MP visible camera with image fusion helps pinpoint and document issues, and recordings share to the Thermography mobile app. Up to 8 hours of battery life and IP54, 2 m drop-rated construction suit it to daily field use.
Features
Applications
| Imaging and Optical | |
| Detector Type | Uncooled VOx microbolometer |
| IR Resolution | 120 x 90 (240 x 180 super resolution) |
| Thermal Sensitivity | 60 mK (NETD) |
| Field of View | 50° x 38° |
| Frame Rate | 25 Hz |
| Focus | Focus-free |
| Spectral Range | 7.5 to 14 µm |
| Measurement | |
| Temperature Range | -4 to 1022°F (-20 to 550°C), auto-switching |
| Accuracy | ±2°C or ±2%, whichever is greater |
| Display and Storage | |
| Display | 2.4" LCD |
| Visible Camera | 2 MP |
| Color Palettes | 6 |
| Internal Storage | 16 GB |
| Power and Connectivity | |
| Battery Life | Up to 8 hours |
| Connectivity | USB Type-C |
| General | |
| Operating Temperature | 5 to 122°F (-15 to 50°C) |
| IP Rating | IP54 |
| Drop Rating | 6.56' (2 m) |
| Dimensions | 7.64 x 2.42 x 2.99" (194 x 61.5 x 76 mm) |
| Weight | 12.5 oz (355 g) |
| Imaging and Optical | |
| Detector Type | Uncooled VOx microbolometer |
| IR Resolution | 120 x 90 (240 x 180 super resolution) |
| Thermal Sensitivity | 60 mK (NETD) |
| Field of View | 50° x 38° |
| Frame Rate | 25 Hz |
| Focus | Focus-free |
| Spectral Range | 7.5 to 14 µm |
| Measurement | |
| Temperature Range | -4 to 1022°F (-20 to 550°C), auto-switching |
| Accuracy | ±2°C or ±2%, whichever is greater |
| Display and Storage | |
| Display | 2.4" LCD |
| Visible Camera | 2 MP |
| Color Palettes | 6 |
| Internal Storage | 16 GB |
| Power and Connectivity | |
| Battery Life | Up to 8 hours |
| Connectivity | USB Type-C |
| General | |
| Operating Temperature | 5 to 122°F (-15 to 50°C) |
| IP Rating | IP54 |
| Drop Rating | 6.56' (2 m) |
| Dimensions | 7.64 x 2.42 x 2.99" (194 x 61.5 x 76 mm) |
| Weight | 12.5 oz (355 g) |
